Geometry of Right Angled Triangle Area

CMAT 2023 · Quantitative Techniques & Data Interpretation · Hard · Geometry

All CMAT 2023 questionsMore Geometry questionsAll CMAT QTDI

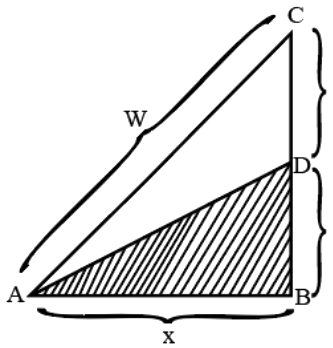

In the following diagram, if the shaded area is one half the area of triangle ABC and angle ABC is right angle then the length of line segment AD is

        C
       /|
      / | z
     /  |
 W  /   D
   /   /|
  /   / | y
 /   /  |
A-------B
    x

(Note: AC=WAC = W, AB=xAB = x, BD=yBD = y, DC=zDC = z)

  1. A.

    12W\frac{1}{2} W

  2. B.

    2x2+z2\sqrt{2x^2 + z^2}

  3. C.

    W2−3y2\sqrt{W^2 - 3y^2}

  4. D.

    y2−z2\sqrt{y^2 - z^2}

Answer

C

Explanation

Area of △ABC=12x(y+z)\triangle ABC = \frac{1}{2} x (y + z). Area of △ABD=12xy\triangle ABD = \frac{1}{2} xy.

Given shaded area (△ACD\triangle ACD) is half the area of △ABC\triangle ABC, so Area(△ABC\triangle ABC) =2×= 2 \times Area(△ABD\triangle ABD): 12x(y+z)=2(12xy)⇒y+z=2y⇒z=y\frac{1}{2} x (y + z) = 2 \left(\frac{1}{2} xy\right) \Rightarrow y + z = 2y \Rightarrow z = y

In right △ABC\triangle ABC: W2=x2+(y+z)2=x2+(2y)2=x2+4y2W^2 = x^2 + (y + z)^2 = x^2 + (2y)^2 = x^2 + 4y^2

In right △ABD\triangle ABD: AD2=x2+y2=(W2−4y2)+y2=W2−3y2AD^2 = x^2 + y^2 = (W^2 - 4y^2) + y^2 = W^2 - 3y^2 AD=W2−3y2AD = \sqrt{W^2 - 3y^2}
